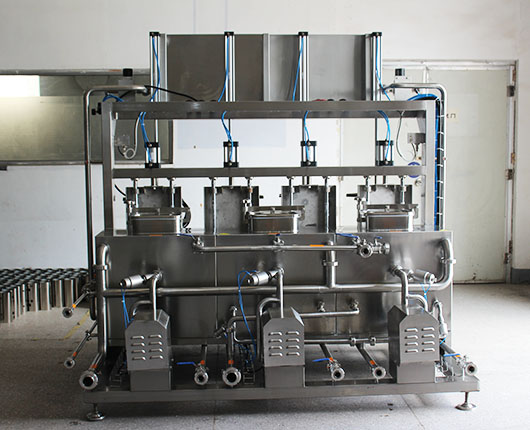

Equipment detailsCFA4-33S(E)-T-H-1-1M-L BEER KEG WASHER AND FILLER1Size:W*L*H1.80X2.30X2.08M2Weight720KG3with slide or not(No)Yes4Packing Size (L*W*H)2.65X1.80X2.45M5Gross Weight1059KG6CapacityWashing part:60-90pcs/hFilling part:40-50pcs/h7PowerAccording to user local power (3 Phases 380V 50Hz)8Power port3P+N+G9Heater waySteam CoilerElectrical Heater10Power consumption3.0KW15.0KW11Main MaterialSUS30412Water tank material and volumeSUS304  Single tank / Volume=100L (3pcs)13Motor type and brandSUS304 Pump Head14Temperature prodeNTC15Temperature  control modeSTC-20016Time setting waySiemens PLC 200 smart17Connect typewater inlet and drain outlet1.5" Tri-clampSteam inletDIN male fitting18Spear typeASDG19Keg typeEURO DIN AMERICAN 20L-60Lkeg20Filling measurement typeFlow Switch
Flow Meter21Washing part inlet with pressure detection or notYesNo
22The table can rise or notYesNo
23Washing part outlet with the residual liquid detection or notYesNo
24Washing working procedureLock down→ air purge/drain off → hot water 1 washing→ air purge/drain off → caustic washing → air purge/to caustic tank → hot water 2 washing → air purge/drain off →acid washing → air purge/to acid tank→hot water 3 washing →steam purge/drain off →steam sterilized → steam keep pressure sterilized→CO2 purge/drain off→CO2 fill25Filling working procedureLock down→ sterilize → CO2 purge→ spear open → CO2 fill→ filling→ spear close→ hot water washing spear→CO2 purge/drain off →Stop26PackageComposite board boxes27Lead time40-45 days
